AF45D

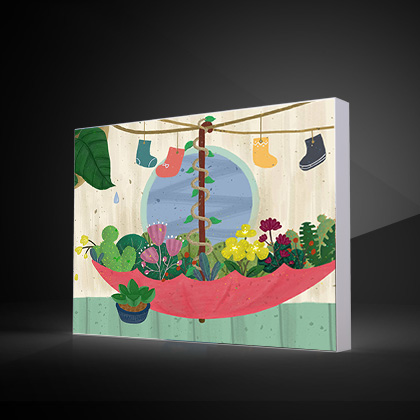

Fabric Light Box

Colour

#ff8080 #fff600 #80a1ff #ffb380 #8cff80 #fddaf5 #fff

1.Fabric light box
2.Packaging: bubble bag, cartons, plus plywood frame for seafreight
3.Structure: the Edgemax light source, aluminum frame
4.Frame color: oxidated alloy aluminum, other colors can be customized
5.Easy installation, safe and simple to use
6.Visible surface: Single
7.Input voltage: 12V/24V
8.Suitable size: OEM
9.Power: 12W-400W

Overview
Structure
Parameter
Download(Video, Specification)

Performance

Packaging: bubble bag, cartons, plus plywood frame for seafreight
Structure: the Edgelight LGP, aluminum frame, SMD LED light source
Frame color: oxidated alloy aluminum, other colors can be customized
Easy installation, safe and simple to use

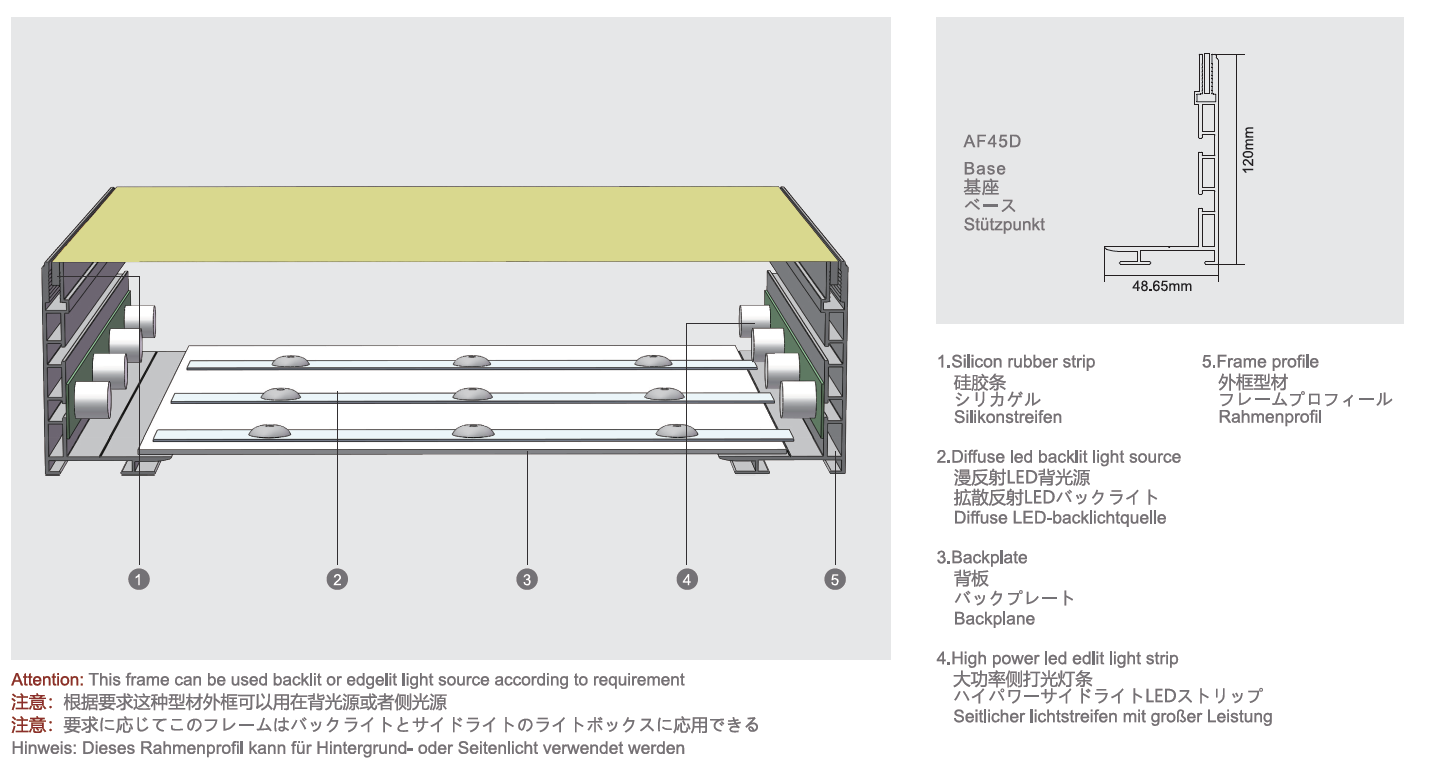

Structure（MM）

Parameter

Item	Frame Size /mm	View Size /mm	Thickness /mm	Film Size /mm	Packaging Size /mm
	6000x1000	5994x994	120	3021*1021	16201701210
	3000x1000	2994x994		3021*1021	16201701210
B0	1414x1000	1408x994		1435*1021	16201701210
B1	1000x707	994x701		1021*728	1140170850
B2	707x500	701x494		728*521	840170650
A0	1189x841	1183x835		1210*862	13401701020
A1	841x594	835x588		862*615	1000170770
A2	594x420	588x414		615*441	730170570
A3	420x297	414x291		441*318	580170460
A4	297x210	291x204		318*231	500170300

Product Documentation

AF45D.pdf
