AF28A

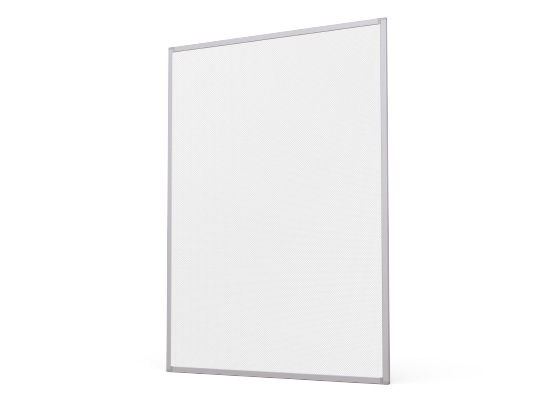

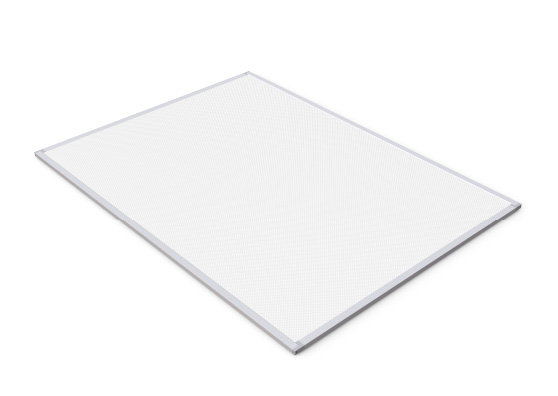

Framed Edgelux Light Guide Panel
LED
2835
160°
2Years
12/48V
IP65
Perfect even lighting
Great reduction of transportation costs
Instant start-up ,no flickering ,no noise
Using PMMA materials ,more than 90% light output ,even light ,no glare
Excellent heat dsspation performance effectively ensure the stability for long-term
Performance

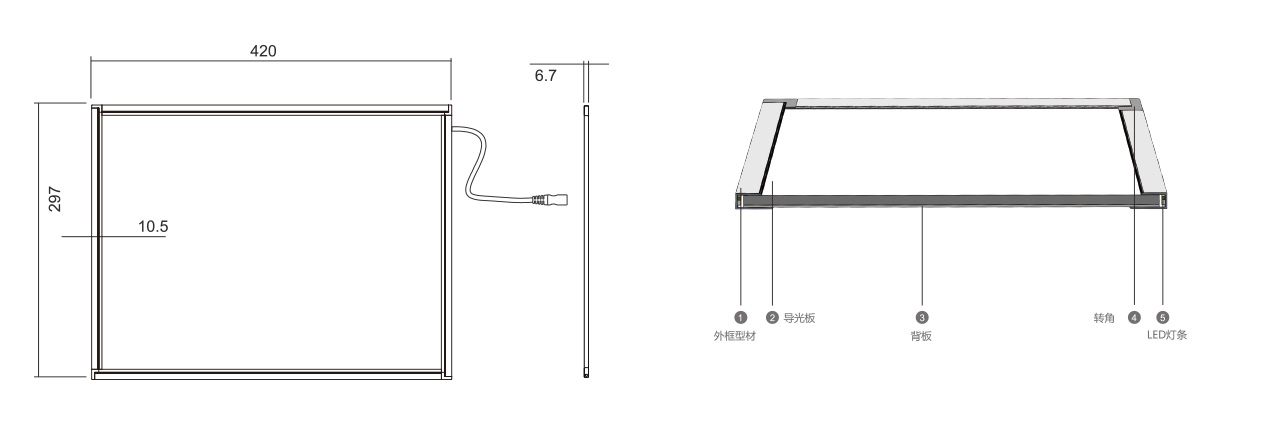

Structure（MM）
Parameter
| Item | Frame Size | Viewing Size (mm) | LED Strip description | ||||||
| Length | Width | Thickness | Length | Width | Voltage(V) | Power(W) | Lighting Side | Q'ty/pcs | |
| A4 | 297 | 210 | 6.7 | 276 | 189 | 12/24 | 2.61 | 297 | 1 |
| A3 | 420 | 297 | 6.7 | 399 | 276 | 12/24 | 5.19 | 420 | 1 |
| A2 | 594 | 420 | 6.7 | 573 | 399 | 12/24 | 14.4 | 594 | 2 |
| A1 | 841 | 594 | 6.7 | 820 | 573 | 12/24 | 17.6 | 841 | 2 |
