AF29A

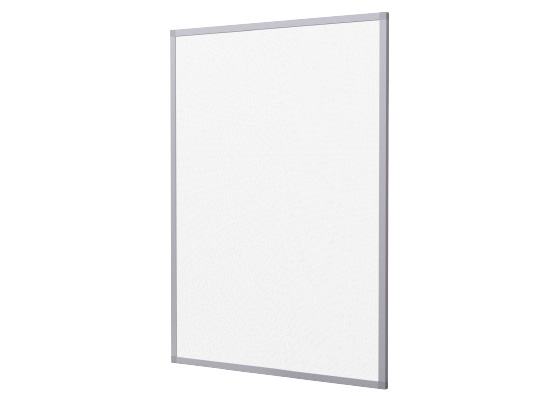

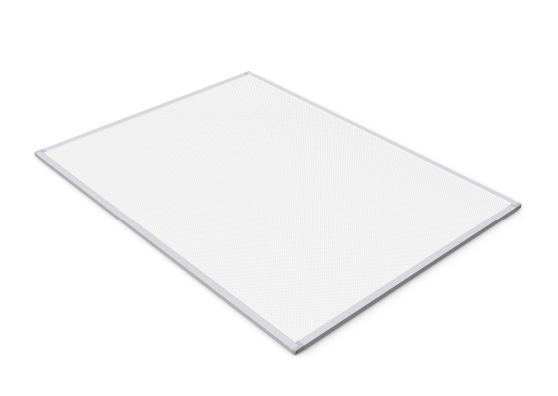

Framed Edgelux Light Guide Panel
Almost perfect uniform lighting
Greatly reduces transportation costs
Excellent heat dissipation performance effectively ensures long-term stability
Fast startup, no flickering, no noise
Using high light guiding PMMA material, with over 90% light output, uniform light output, and no glare
Performance

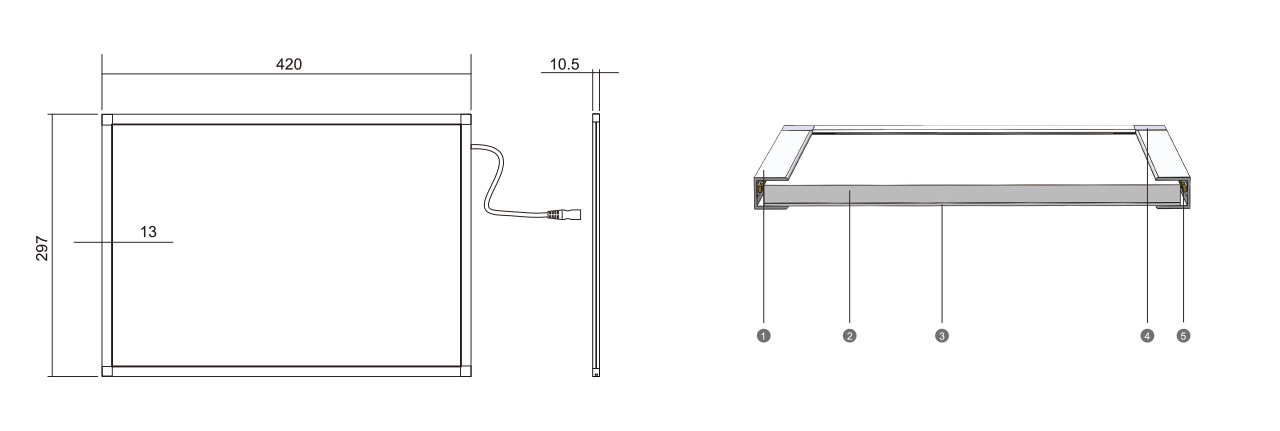

Structure（MM）
Parameter
| Item | Frame Size | Viewing Size (mm) | LED Strip description | ||||||
| Length | Width | Thickness | Length | Width | Voltage(V) | Power(W) | Lighting Side | Q'ty/pcs | |
| A4 | 297 | 210 | 10.5 | 271 | 184 | 12/24 | 2.61 | 297 | 1 |
| A3 | 420 | 297 | 10.5 | 394 | 271 | 12/24 | 5.19 | 420 | 1 |
| A2 | 594 | 420 | 10.5 | 568 | 394 | 12/24 | 14.4 | 594 | 2 |
| A1 | 841 | 594 | 10.5 | 815 | 568 | 12/24 | 17.6 | 841 | 2 |
