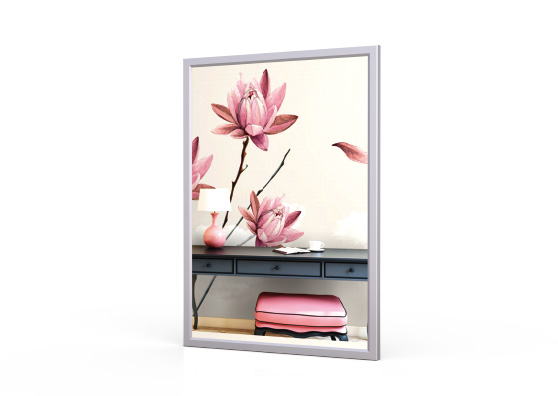

LIGHT BOX AF2A
Clip Type Light Box
Easy to install, safe to use, and convenient. Input voltage: 12V/24V
Visible surface: single-sided border width: 35mm
Power: 12W-120W Suitable size: Medium to large size
Opening method: Four sided opening method. Open the top cover of the light box on all four sides, remove the panel and replace the screen
Packaging method: Bubble bag, cardboard box, sea freight with additional plywood and wooden frame
Structure: Adopting Edgelight light light guide plate, aluminum frame frame, and surface mounted LED
Outer frame color: Aluminum oxide alloy, other colors can be customized through processes such as electrophoresis, spraying, baking paint, etc
Performance
| Item | Frame Size /mm | View Size /mm | Thickness /mm | Film Size /mm | Packaging Size /mm |
| B1 | 1025x767 | 955x697 | 30 | 1000*707 | 1140*90*850 |
| B2 | 732x560 | 662x490 | 707*500 | 840*90*650 | |
| A0 | 1214x901 | 1144x831 | 1189*841 | 1340*90*1020 | |
| A1 | 866x654 | 796x584 | 841*594 | 1000*90*770 | |
| A2 | 619x480 | 549x410 | 594*420 | 730*90*570 | |
| A3 | 445x357 | 375x287 | 420*297 | 580*90*460 | |
| A4 | 322x270 | 252x200 | 297*210 | 500*50*300 |

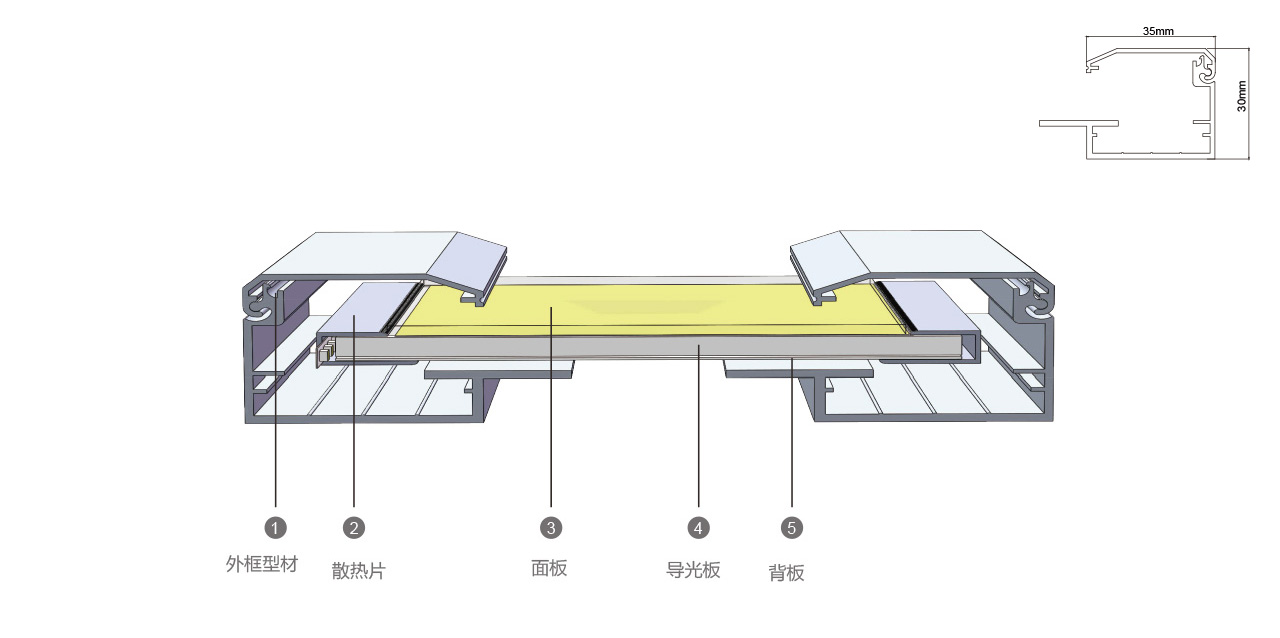

Structure（MM）
Parameter
Product Documentation
