LIGHT BOX AF45
Fabric Light Box
Visible surface: single
Input voltage: 12V/24V
Suitable size: all
Power: 12W-400W
Packaging: bubble bag, cartons, plus plywood frame for seafreight

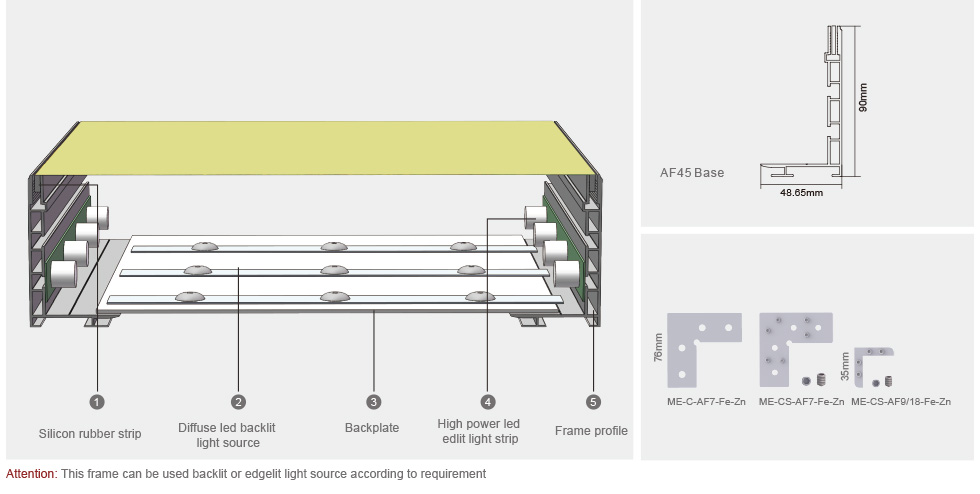

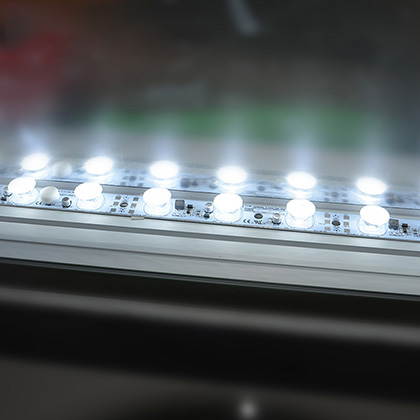

Structure: the Edgelight LGP, aluminum frame, SMD LED light source

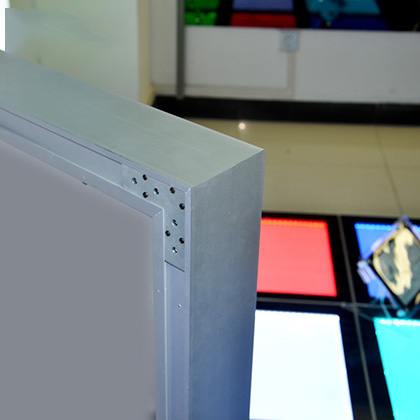

Frame color: oxidated alloy aluminum, other colors can be customized
Easy installation, safe and simple to use
Performance
| Item | Frame Size /mm | View Size /mm | Thickness /mm | Film Size /mm | Packaging Size /mm |
| 6000x1000 | 5994x994 | 90 | 3021*1021 | 6210*140*1210 | |
| 3000x1000 | 2994x994 | 3021*1021 | 3210*140*1210 | ||
| B0 | 1414x1000 | 1408x994 | 1435*1021 | 1620*140*1210 | |
| B1 | 1000x707 | 994x701 | 1021*728 | 1140*140*850 | |
| B2 | 707x500 | 701x494 | 728*521 | 840*140*650 | |
| A0 | 1189x841 | 1183x835 | 1210*862 | 1340*140*1020 | |
| A1 | 841x594 | 835x588 | 862*615 | 1000*140*770 | |
| A2 | 594x420 | 588x414 | 615*441 | 730*140*570 | |
| A3 | 420x297 | 414x291 | 441*318 | 580*140*460 | |
| A4 | 297x210 | 291x204 | 318*231 | 500*140*300 |
Structure（MM）
Parameter
Product Documentation
